Ruckus ZoneFlex T300

Ruckus ZoneFlex T300 88 4.5
Rating 88 votes
Price:
$1-$1295
P/N:
901-T300-WW01
Mô tả ngắn
Ruckus Wireless ZoneFlex T300 901-T300-WW01 Outdoor Wireless Access Point 802.11ac
Thông số kỹ thuật sản phẩm

Cấu hình Ruckus Wireless ZoneFlex T300 901-T300-WW01 Outdoor ngoài trời Wireless Access Point 802.11ac

Cấu hình Ruckus Wireless ZoneFlex T300 901-T300-WW01 Outdoor ngoài trời Wireless Access Point 802.11ac
WiFi Ruckus T300

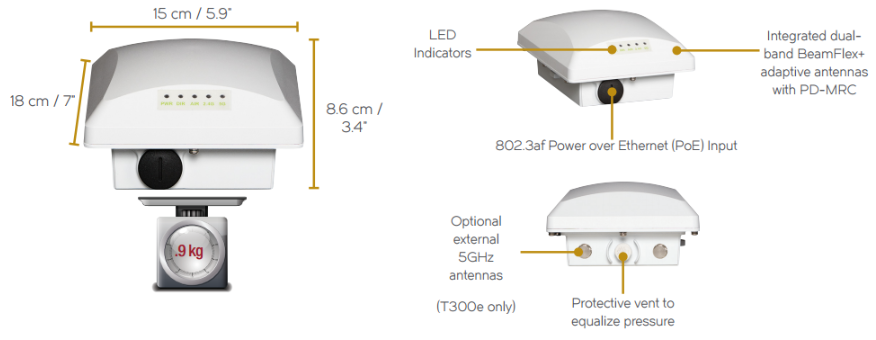

Physical Characteristics
Power 802.3af PoE Input (Class 3 PD)
Physical Size 18 cm (L) x 15 cm (W) x 8.6 cm (H)
7 in (L) x 5.9 in (W) x 3.4 in (H)
Weight 2.1 lbs (1 kg) with bracket
2 lbs (0.9 kg) without bracket
Ethernet Ports 10/100/1000Base-T 802.3,802.3 u,802.3ab
802.3at/af PoE PD Input
Jumbo frame support (2290 byte max MTU)
RF Connections N female qty 2 (optional 5GHz only)
Mounting Options Wall Mount
Pole Mount Diameter 1” to 2.5”
Environmental Conditions Operating temperature range: -20°C to +65° C
Weather protection: IP67 per IEC 60529
Power Draw PoE Input
Idle: 6.5W
Typical: 7.5W
Peak: 11W
Performance and Capacity
Physical Layer Modulation Data Rate 2.4GHz 802.11b/g/n 300Mbps
5GHz 802.11a/n/ac 867Mbps
Concurrent Stations Up to 500 capable per AP
Simultaneous VoIP Clients Up to 30
Wi-Fi
Standards 5 GHz IEEE 802.11ac
2GHz IEEE 802.11g/n
Frequency Bands IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US)
IEEE 802.11ac 5GHz
U-NII-1 5.15-5.25 GHz
U-NII-2 5.25-5.35 (DFS)
U-NII-2B 5.37-5.47†
U-NII-2C 5.47-5.725 (DFS)
U-NII-3 5.725-5.825
ISM 5.725 – 5.875
U-NII-4 5.85-5.925†
WLAN Radio Configuration Dual band concurrent 2 x 2:2 stream radios
Maximum Tx Power1 26 dBm for 2.4GHz
25 dBm for 5.0GHz
Channelization 2.4GHz 802.11b/g/n 20/40 MHz
5GHz 802.11a/n/ac 20/40/80 MHz
BSSID Up to 32 (27 configurable) on 2.4 GHz
Up to 16 (13 configurable) on 5 GHz
Certifications4 U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan
Certification Specs
Transporation ISTA 2A:
Random Vibration & Drop Test
Compression & Loose Cargo Test
ETSI EN 300 019-2-2 Specification T 2.2 Careful transportation
Safety Safety Listing - EU
EN 60950-1:2006/A12:2011
EN 60950-22:2006/AC:2008
International
CB Scheme Certificate
CB Bulletin
IEC 60950-1: 2005 Second Edition
IEC 60950-22: 2005 First edition
CISPR 22
CISPR 24
CAN/CSA C22.2 60950-1 Edition 2
CAN/CSA C22.2 60950-22 Edition 1
Health and Human Safety to RF Exposure EN 62311:2008
EN 50385:2002
FCC OET-65
ICNIRP:2010
Hazardous Materials RoHS Directive 2002/95/EC
RoHS Directive 2011/65/EU
WEEE
Immunity EN61000-4-2 Level 4 Contact / Level 3 Air ESD Immunity
EN61000-4-5 Level 1 & 2 Immunity
EN61000-4-3 Level 4 EMC Immunity
GR1089 - 1kV 25A Surge (data ports)
Railway and Rolling Stock EN50121-1
EN50121-4
EN61373 (for trackside use)
Wi-Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac
WPA — Enterprise, Personal
WPA2 — Enterprise, Personal
Optimization — WMM

Thông tin đặt hàng báo giá cấu hình WiFi Ruckus ZoneFlex T300 qua datasheet

Ruckus ZoneFlex T300 802.11ac Wi-Fi Outdoor Access Point 901-T300-US01 giá List Price: $1,295.00
Ruckus Power over Ethernet (PoE) Adapter (10/100/1000 Mbps) with US power adapter -Applicable for 7731, R710, R700, R600, R500, R300, 7982, 7372, 7352, 7321, H500, 7055, T300, T301 902-0162-US00 giá List Price: $60.00
Thông tin đặt hàng báo giá cấu hình WiFi Ruckus ZoneFlex T300 qua datasheet
